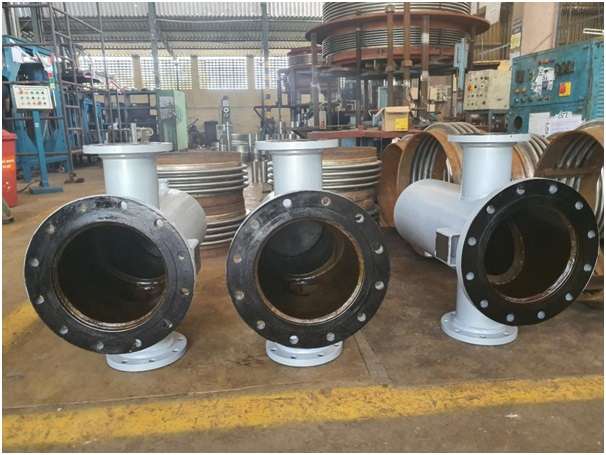

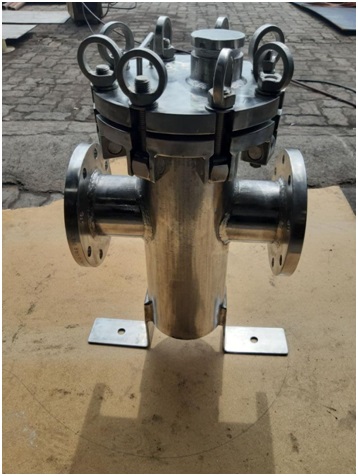

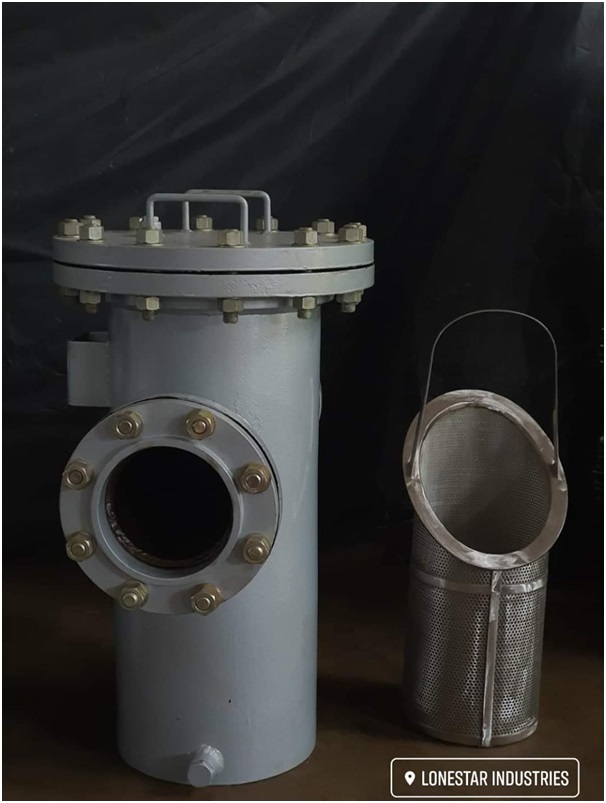

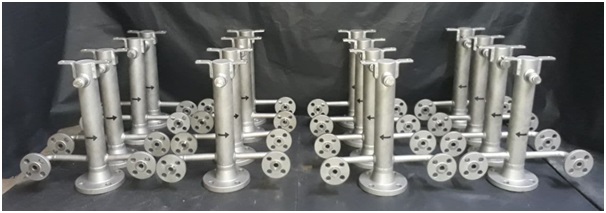

A simplex strainer (single basket) is used when the flow or process can be shut down for a short period of time. Also called as Bucket type strainer, Pot strainer or basket strainer depending on size and industry.

Key features of LSI Basket strainers:

  • Easy maintenance
  • High flow rate handling capacity
  • Efficient design for low cost
  • Reliable design

Manufacturing methods:

  • Can be fabricated / Cast / Forged – as per customer requirement
  • In-house painting and packing facilities

Design specifications:

  • Pressure drop at clean condition, at clogged condition and open area ratio/gross filtration area can be customized to customer requirements. Our standard items have a filtration area of 4:1
  • Cover compressed screen handle for secure seating
  • Drain/ Blow off connection & air vent connection furnished with plug as standard
  • Strainers meet ASME B16.5 & ASME B16.34 requirements
  • Blow-out gasket proof design for effective gasket sealing
  • Body size can be varied : Large body sized strainers are called Pot strainers
  • Capability to design vessel/body as per ASME sec VIII Div I . Vessels can be designed for full vacuum condition. Verify design with FEA
  • Welders are qualified as per ASME Sec IX (if required)
  • Design & Dimensional flexibility as required by customer

Material of Construction:

  • Carbon steel (Eg : A 216 Gr WCB / IS 2062/A 516 Gr. 70 /A 105 etc.)
  • Low temperature carbon steel (Eg : A 106 Gr. B body)
  • Stainless steel (Eg : CF8, CF8M, SS 304, SS 316 equivalent)
  • Inconel, Monel – other alloy steels (Eg : Inconel 625,825)
  • Duplex stainless steel, super duplex stainless steel , other special alloy materials (Eg : 2205)
  • Others (as per customer specification)

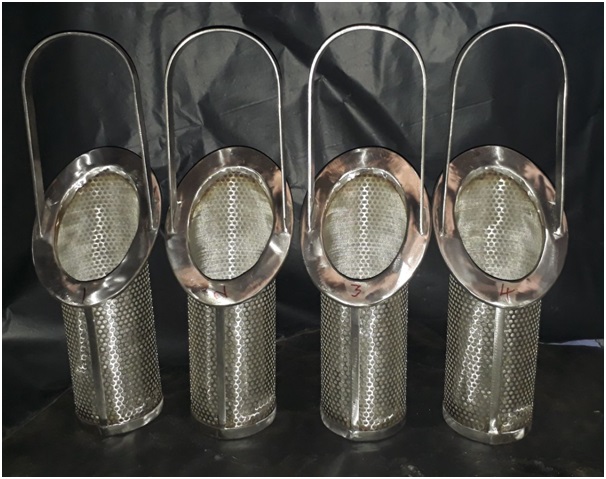

Screen:

  • Perforated sheet + Mesh (or with one of the 2 depending on customer requirement)
  • MOC:Stainless steel, Alloy steel

End connection:

  • Flat face Flanged (of any standard – ASME B 16.5, ASME B 16.47, DIN , EN etc.)
  • Raised face Flanged
  • Butt Weld
  • WNRF
  • Screwed end (NPT) - upto 4” , Socket weld – upto 4”

Size:

  • ¼” to 78”
  • For any pressure rating

Inlet/Outlet:

  • Inline
  • Offset
  • 90 Deg
  • Single side

Types:

  • Single filter
  • Dual filter
  • Multistage filter

Additional accessories depending on customer requirements:

  • Hinged cover or davit assembly with bolted flange closure for sizes above 600 NB
  • Jib cranes for sizes above 600 NB
  • Quick open closure for sizes below 600 NB
  • P-Tappings/ Gauge/ DPT connections to monitor pressure drop/flow – critical applications
  • Drain/Vent Valves – Centred or offset blow downs
  • Inlet/outlet valves
  • Steam jacket for highly viscous fluids
  • Rotated or offset nozzle placement
  • Back-flushing system for manual/ Automatic
  • Customized Support leg structures
  • Automatic solenoid valve
  • Magnetic inserts to attract iron if required
  • Additional set of spares, gaskets, fasteners, mating flanges if required, to help reduce down time
  • Pressure drop measurement ports/ Vent ports
  • Start – up strainers
  • Coating/ lining requirements (Electroplating, Cladding etc.)

Inspection / Testing Capabilities:

This depends on customer requirements and approved QAP.

LSI has the facility to do the following Tests:

  • Dye penetrant test
  • Hydrostatic/Hydraulic test
  • Vaccum test
  • Radiography
  • Ultrasound
  • Type test/ pressure drop test (additional cost for additional strainer)
  • Burst pressure test for strainer element (additional cost test)
  • PMI for SS parts
  • Charpy test for raw material
  • Any other test as per customer requirements.

Application:

  • Oil and Gas Industry
  • Process Industry
  • Pharmaceutical Industry
  • Chemical Industry
  • Pulp and Paper Industry
  • Power Industry
  • Metals and Mining Industry
  • Water and Waste Management
