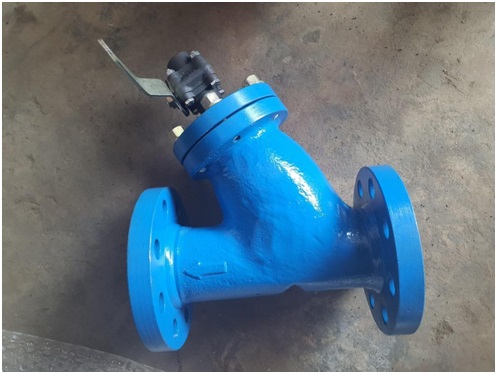

Y-Strainers are devices for mechanically removing solids from flowing liquids or gases by means of a perforated or wire mesh straining element. They are used in pipelines to protect equipment such as pumps, meters, control valves, steam traps and regulators.
Key features of LSI Y strainers:
- Efficient design for low cost
- Compact end to end dimension
- Suitable for vertical or horizontal mounting
Fabrication methods:

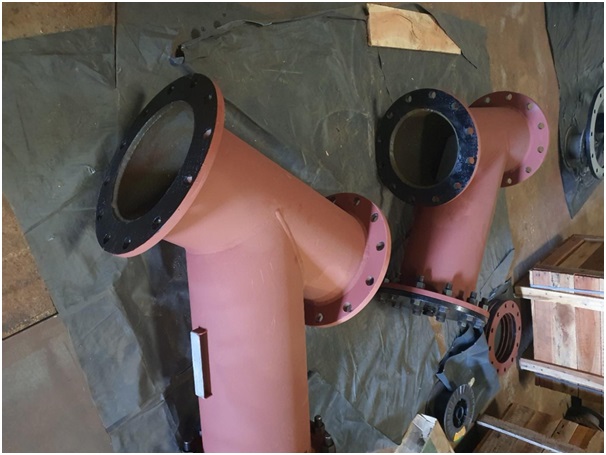

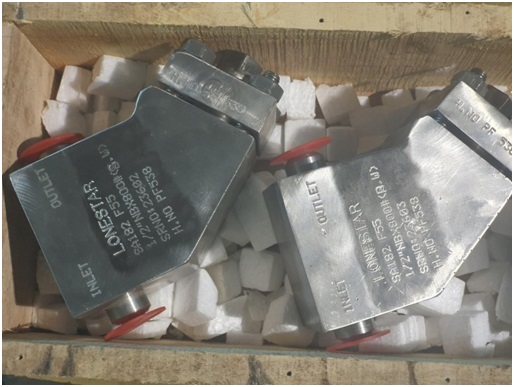

- Can be fabricated / Cast / Forged – as per customer requirement
- In-house painting and packing facilities
Design specifications:
- Pressure drop at clean condition, at clogged condition and open area ratio/gross filtration area can be customized to customer requirements.
- Machined screen seating area in the body for screen retention
- Drain/blow off connection furnished with plug as standard (off centre / on centre)
- Strainers meet ASME B16.5 & ASME B16.34 requirements
- Blow-out gasket proof design for effective gasket sealing
- Welders are qualified as per ASME Sec IX (if required)
Material of Construction:
- Carbon steel ( Eg -A 216 Gr WCB / IS 2062/A 516 gr 70 /A 105 etc)
- Low temperature carbon steel ( Eg-A 106 gr B body)
- Stainless steel (Eg -CF8, CF8M, SS 304, SS 316 equivalent)
- Inconel, Monel – other alloy steels (Ex- Inconel 625,825 )
- Duplex stainless steel, super duplex stainless steel , other special alloy materials (Example -2205)

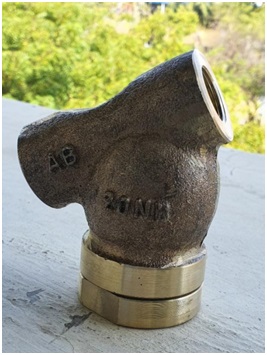

- Aluminium bronze, Ni-Aluminium bronze, brass strainers
Size:
- ¼” to 32”
- For any pressure rating
Screen:
Perforated sheet, mesh - Stainless steel (or) Alloy steel
End connection:
- Flat face Flanged ( of any standard – ASME B 16.5, ASME B 16.47, DIN , EN etc)
- Raised face Flanged
- Butt Weld
- WNRF
- Screwed end (NPT) upto 4” , Socket weld – upto 4”
Types:
- Oversized body
- Equal Y strainer (at any angle)
Additional accessories depending on customer requirements:
- Drain valve
- Mating flanges, fasteners & gaskets
- Gauge /DPT to measure inlet / outlet pressure drop
- Spare filters
- Start-up strainers
- Coating/ lining requirements (Electroplating, Cladding etc)
LSI has the facility to do the following Tests:
- Dye penetrant test
- Hydrostatic/Hydraulic test
- Vaccum test
- Radiography
- Ultrasound
- Type test/ pressure drop test (additional cost for additional strainer)
- Burst pressure test for strainer element (additional cost test)
- PMI for SS parts
- Charpy test for raw material
- Any other test as per customer requirements.
Application:
- Process Industry
- HVAC
- Power Industry
- Chemical Industry
- Pharmaceutical Industry
- Oil and Gas Industry
- Pulp and Paper Industry
- Metals and Mining Industry
- Mineral Industry
- Water and Waste Management
- Fire Fighting Industry
